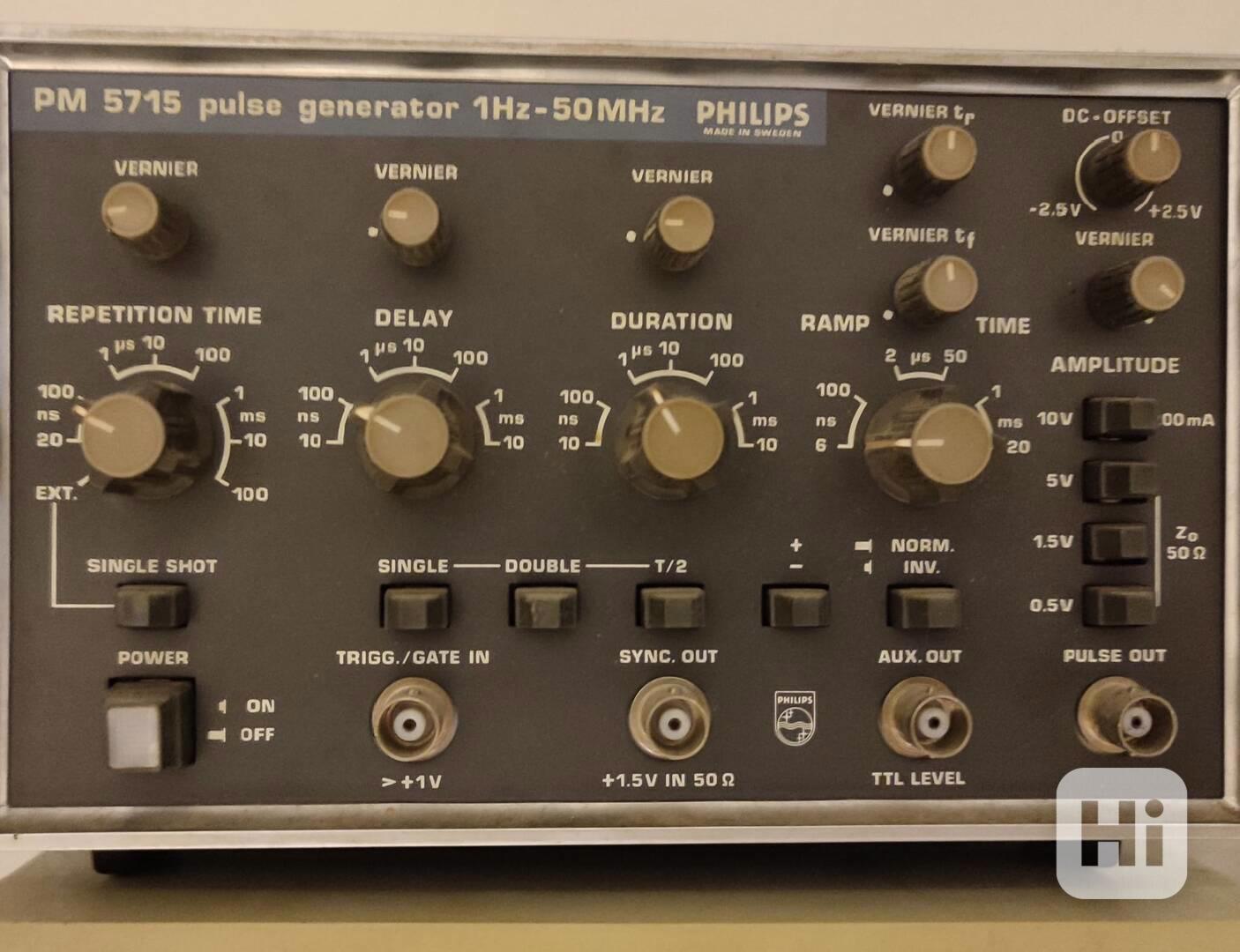

Pulzní generátor PHILIPS PM5715 1Hz-50MHz

The Philips PM 5715 generates high-quality pulses at a repetition frequency of 1Hz to 50MHz and rise and fall time being independently and continuously variable between 6ns and 0.5s. Reach out to Select-Test.com for further assistance.

FEATURES :

· Repetition Rate: 1 Hz to 50 MHz

· Pulse Delay Range: 10 ns to 100 ms

· Modes of Operation: T/2, single pulse or double pulse

o Double pulse modes provides "twin" pulses at set delay with simultaneously controlled pulse duration

· Amplitude:

o 0.2 V to 10 V into 50 ohm

o Variable in 4 ranges (10 V, 5 V, 1.5 V, 0.5 V) with continuous control within the ranges

· Polarity: Positive or negative, normal or inverted

· Source impedance:

o Positive 10 V: current source (max. 200 mA)

o Positions 5 V, 1.5 V and 0.5 V: internally terminated with 50 ohm

· Rise and Fall Time at 5 V and Lower Positions: <= 6 ns to 0.5 s
